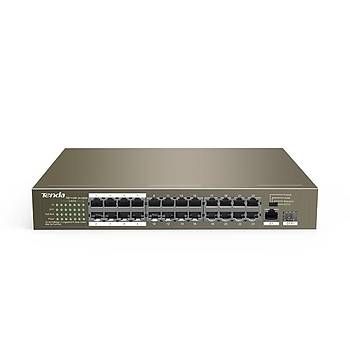

Tenda TEF1126P-24-250W 24 Port 10/100Mbps Switch

26P-24-250W    /    Ethernet Switch    /    24 10/100Mbps +1 Gigabit/SFP Slots Switch With 24-Port PoE

TEF1126P-24-250W is a Tenda PoE switch that offers 24 10/100 Mbps Base-TX RJ45 ports, 1 10/100/1000 Mbps Base-T RJ45 ports, and 1 1000 Mbps Base-X SFP port. Ports 1-24 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 225 W and can supply power to and exchange data with APs, IP cameras, and IP phones through CAT5 cables. It also provides simple management modes such as CCTV, VLAN, and Extend to help reduce cabling costs of IP terminals like APs and IP cameras.

Standart

IEEE 802.3?IEEE 802.3u?IEEE 802.3ab?IEEE 802.3x?IEEE 802.3af?IEEE 802.3at

MTBF

≥100,000hours

Gösterge

24*Link/Act per device
1*G1 Link/Act per device
1*SFP Link/Act per device
1*PoE-MAX per device
1*Power per device

Arayüz

24 10/100Base-TX ports(Data/Power)
1 10/100/1000Base-T port(Data)
1 1000Base-X SFP port

Yıldırımdan Korunma

6KV

Sakla ve İlet

Yes

Değişim Kapasitesi

8.8 Gbit/s

Paket Yönlendirme Hızı

6.55Mpps

MAC Adres Tablosu

4K

Ürün Tedarik Yönetimi

Port 1 to Port 16 support IEEE802.3at/af POE standard

PN geçişi

1 2 4 5 +,3 6 7 8 -

Giriş Gücü

AC:100-240V~ 50/60Hz

Boyut

294*215*44mm( W x D x H )

Güç Tüketimi

in full configuration:<250W
PoE Max Power Supply:225W

Port Özellikleri

CCTV: 1-8 ports based CoS, If multiple IP cameras are connected to the switch, you are recommended to enable this mode and connect the G1 or SFP1 port of this switch to the upstream device to which the monitoring computer connects. This ensures smoother monitoring video playback.
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
VLAN: In this mode,1-24 ports of the switch cannot communicate with each other, but can communicate with the G1 and SFP1 ports.Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing?
Extend: In this mode, the data rate of 1-8 port of the switch is limited to 10 Mbps, whereas the maximum transmission distance of the port is increased to 250 meters. All the ports of the switch can communicate with each other.

Çevre

Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
